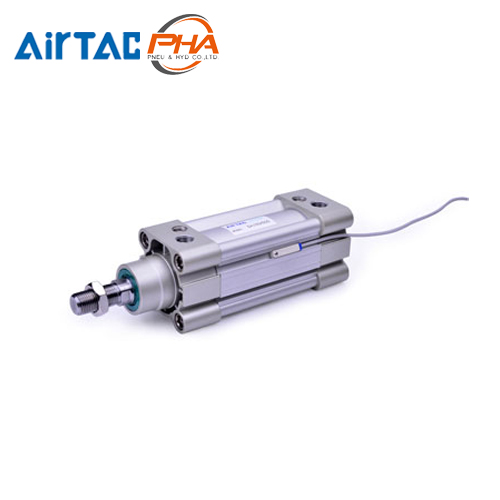

AirTAC - กระบอกลม กระบอกสูบ Air Cylinder รุ่น SAI series

AirTAC - กระบอกลม กระบอกสูบ Air Cylinder รุ่น SAI (SAI Series)

AirTAC - กระบอกลม กระบอกสูบ Air Cylinder รุ่น SAI Series

ISO15552 (original ISO6431) standard cylinder.
The piston seal is composed of two Y-shape one-way seal structure, which has compensation function, long service life and low start-up pressure.
The *-shaped aluminum pipe without tie rod has good corrosion resistance. With sensor switch groove on two sides of body.
The buffer adjustment of cylinder is smooth and steady
Cylinders and accessories for installation with several specifications are optional.

Bore size (mm)		32	40	50	63	80	100	125	160
Acting type		Double acting
Fluid		Air (to be filterred by 40µm filter element)
Mounting type	SAI	Basic FA, FB, CA, CB, LB, TC, FTC, TCM1, TCM2
Mounting type	SAID, SAIJ	Basic FA, LB, TC, FTC, TCM1, TCM2
Operating pressure		0.15~1.0 MPa (22~145 psi) (1.5~10.0 bar)
Proof pressure		1.5 MPa (215 psi) (15 bar)
Temperature		-20~70°C
Speed range mm/s		30~80						30~500
Stroke tolerance		0~250^+1.0, 251~1000^+1.5, 1001~1500^+2.0
Cushion type		Variable cushion
Adjustable cushion stroke		27		30		36		40	50
Port size [Note 1]		1/8"	1/4"		3/8"		1/2"		3/4"

[Note 1] PT thread, G thread and NPT thread are available.
Add) Refer to P337 for detail of sensor switch.

Example: SAI160[ ] x 50 S [ ] [ ] [ ]

How to select: 4H₁ 160₂ [ ]₃ 50₄ 20₅ S₆ [ ]₇ [ ]₈ [ ]₉

(1) model	(2) Bore size	(3) Rod material	(4) Stroke	(5) Adijustable stroke	(6) Magnet	(7) Mountiong type [note 1]	(8) Seals material	(9) Thread type
SAU: Double acting type	32 40 50 63 80 100	Blank : medium carbon steel A : SUS420J2 B : SUS304	Refer to stroke table for details	No this code	Blank: With Without magnet S: With magnet	Blank	Blank: TPU H: Viton N: NBR	Blank: PT G: G T: NPT
						LB
						FA
						FB
						CA
						CB
SAUD: Double rod type						CR
SAUD: Double rod type						FTC
SAUJ: Adjustable stroke type				10 20 30 40 50 75 100		TC
						Blank
						LB
						FA
						FTC
						TC

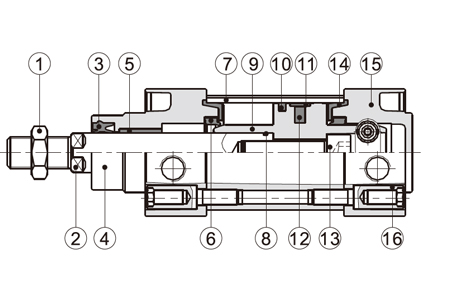

Inner AirTAC Air Cylinder - SAI series

NO	Item	Material
1	Rod nut	Carbon steel / Stainless steel
2	Piston rod	Carbon steel with 20µm chrome plated or Stainless steel
3	Front cover packing	TPU
4	Front cover	Aluminum alloy
5	Bushing	Wear resistant material
6	Cushing O-ring	TPU
7	Barrel	Aluminum alloy
8	O-ring	NBR
9	Piston	Aluminum alloy
10	Piston Seal	TPU
11	Wear ring	Wear resistant material
12	Magnet	Plastic (Ø 100 and below) / Rubber (Others)
13	Bolt	Carboon steel
14	Buffer gasket	TPU
15	Back cover	Aluminum alloy
16	Screw	Carbon steel / Stainless steel

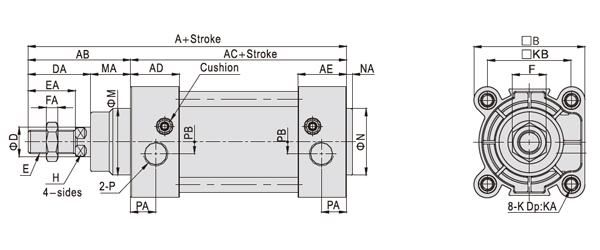

Dimensions AirTAC Air Cylinder SAI series

Bore size / item	A	AB	AC	AD	AE	B	D	DA	E	FA	F	FA	M	MA	H	K(without TC)	K(with TC)	KA(without TC)	KA(with TC)	KB	N	NA	P	PA	PB
32	142	48	94	27.5	27.5	47	12	29	M10 x1.25	22	17	6	30	19	10	M6	M5	16	14	32.5	30	3	1/8"	13	5.5
40	159	54	105	32	32	53	16	33	M12x1.25	24	17	7	35	21	13	M6	M5	16	16	38	35	3.5	1/4"	17	6
50	175	69	106	31	31	65	20	42	M16x1.5	32	23	8	40	27	17	M8	M6	16	16	46.5	40	3.5	1/4"	15.5	7.5
63	190	69	121	33	33	75	20	42	M16x1.5	32	23	8	45	27	17	M8	M6	16	16	56.5	45	4	3/8"	16.5	7.5
80	214	86	128	33	33	95	25	53	M20x1.5	40	26	10	45	33	22	M10	M8	17	16	72	45	4	3/8"	16.5	9
100	229	91	138	37	37	115	25	55	M20x1.5	40	26	10	55	36	22	M10	M8	17	16	89	55	4	1/2"	18.5	9.5
125	279	119	160	46	46	140	32	74	M27x2.0	54	41	13.5	60	45	27	M12	M12	20	20	110	60	4	1/2"	23	14
160	332	152	180	50	50	180	40	94	M36x2.0	72	55	18	65	58	36	M16	M16	24	24	140	65	4	3/4"	25	15
200	347	167	180	50	50	220	40	100	M36x2.0	72	55	18	75	67	36	M16	M16	24	24	175	75	5	3/4"	25	15

Remark: The dimensions of magnet type cylinder the same as non-magnet type cylinder.
